Mammut Hydraulic Jacks
High Tonnage Jacks - Mining and special applications jacks
M60/22
Air hydraulic jack
Jack designed for use with mining equipment.
M60/22 main features:
– Lightweight, quiet, compact and easy to manoeuvre.
– Optional remote control available for extra safety.
– Folding handle.
– Wide range of models and capacities from 60 t to 150 t.
– Designed for tough conditions.
– Pneumatic tires for easy manoeuvrability.
– Internal check valves to prevent unintentional decent .
Technical Data
Capacity:60/30 t
66.1/33.1 ton
Net weight:94 Kg
207 lb
Working air pressure:10-12 bar
145-174 psi
Air consumption:600 nl/min
Stroke:335 mm
13.2 in
Min. height:222 mm
8.7 in
Number of pistons:2
Pistons stroke:109 - 226 mm
4.3 - 8.9 in
M100-72-ATLAS
M60/22 ATLAS Air / Hydraulic locking heavy vehicle jacks main features:
– Lightweight, quiet, compact and easy to manoeuvre.
– Two in one Jack that can also mechanically lock and turn into a jack stand
– Mechanical safety lock sealed inside the cylinder unit to protect it from dirt and dust
– Remote control that operates lift and lock.
– “Safe Load” LED indicators
– Folding handle.
– Designed for tough conditions.
– Pneumatic tires for easy operation.
Technical Data
Capacity: 100 t / 110.2 ton
Net weight: 427 kg / 941 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Max height: 1062 mm / 46.9 in
Min. height: 722 mm / 28.4 in
Number of pistons: 1
Pistons stroke: 340 mm / 13.3 in

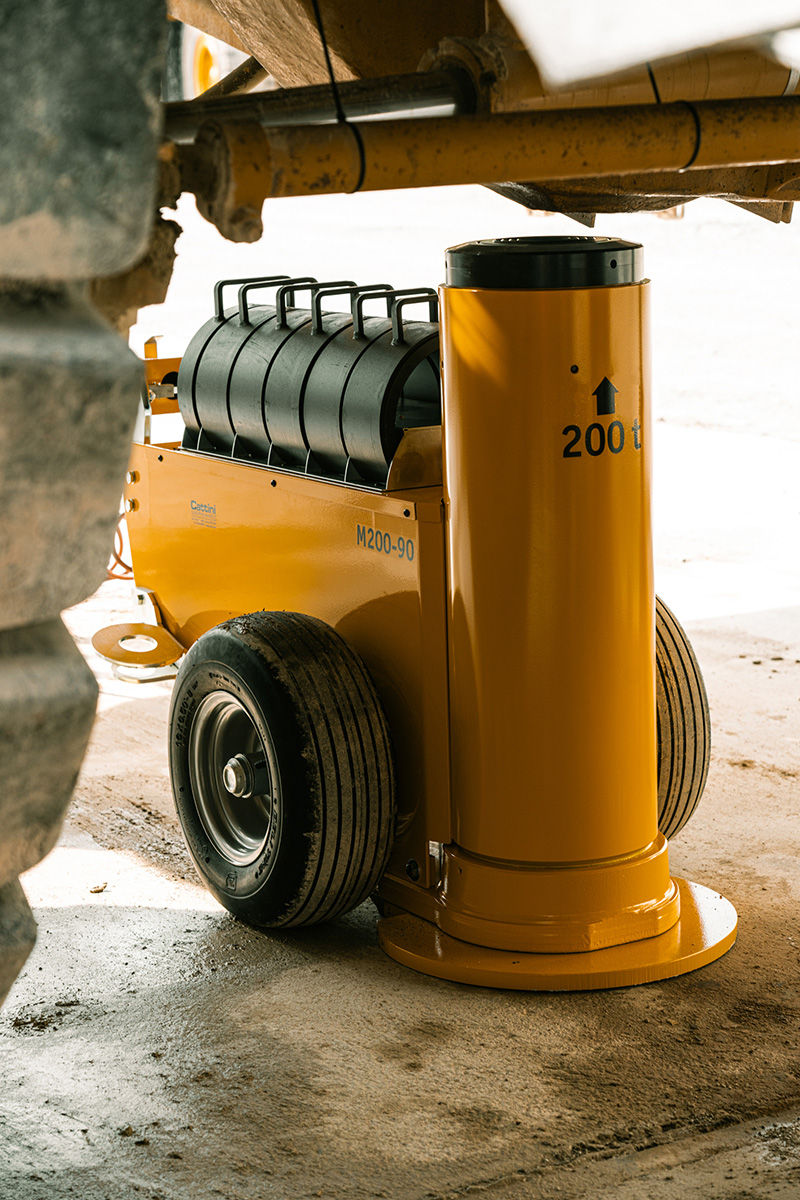

M200-90
M200/90 main features:
– Lightweight, quiet, compact and easy to manoeuvre .
– Remote control as standard for extra safety.
– Folding handle.
– Wide range of models and capacities from 60 t to 200 t.
– Designed for tough Australian conditions.
– Pneumatic tires for easy operation.
– Internal check valves to prevent unintentional descent.
– Load blocks available for mechanical lock and to turn jack into a jack stand.
Technical Data
Capacity: 200 t / 220.4 ton
Net weight: 450 kg / 992 lb
Working air pressure: 10-12 bar / 145-174 psi
Air consumption: 600 nl/min
Max height: 1450 mm / 57 in
Min. height: 900 mm / 35.4 in
Number of pistons: 1
Stroke: 550 mm / 21.6 in
